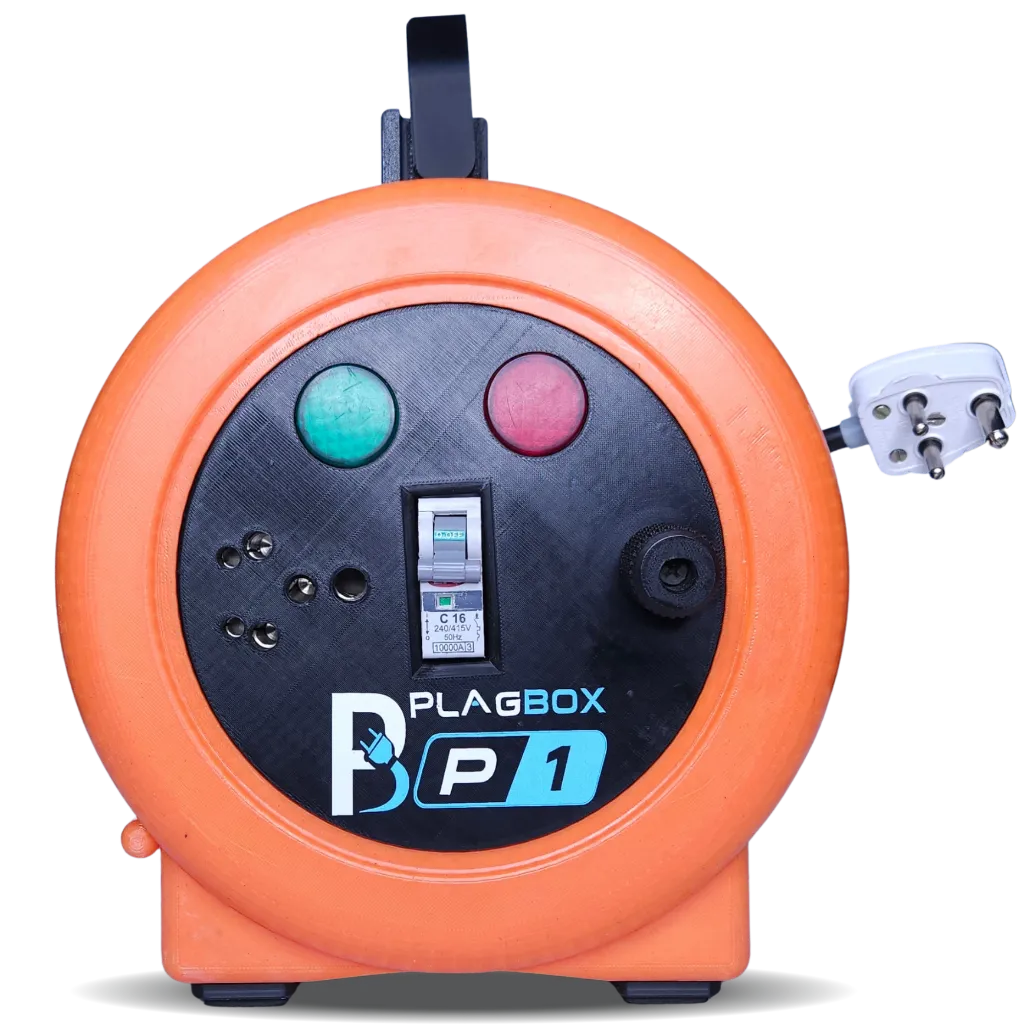

Plagbox P1

Take safe EV charging wherever you go. Plagbox features a heavy-duty extension cable, dedicated earthing, and built-in circuit protection.

₹ 9,999.00 ₹ 9,999.00 ₹ 15,000.00
Contact Us
7-day money-back guarantee*
Current shipping time is 5-8 days. Lock your order now.

Free Shipping Pan India

7- Day Replacement

1- Year Warranty

Secure Checkout

Plagbox P1 Specifications


  • SpecificationDetails
    ApplicationPortable EV Charging Extension Box

    Body Material

    High-Strength ABS Enclosure

    Dimensions (H × W × D)

    26 × 22 × 21 cm

    Socket Type1 × Type D - Domestic 5/15A Socket
    Plug16A Heavy-Duty 3-Pin Plug
    Extension Cable15 / 20 / 25  m, 2.5 sq.mm, 3-Core Pure Copper Cable
    Earthing CableUp to 5 m, 2.5 sq.mm Pure Copper Cable
    Earthing Rod12 cm Pure Copper Earthing Rod
    Circuit ProtectionIndustrial-Grade MCB
    Power IndicatorsRed (Input), Green (Output)
    Cable StorageBuilt-in Cable Winding System
    Earthing StorageIntegrated Storage Compartment

    Input Voltage

    Single Phase 220V AC (±10%)

    Output Voltage

    220V AC (±10%)

    Frequency50 Hz
    Rated Current16A
    Maximum LoadUp to 3.3 kW
    CompatibilityThis charging socket is compatible with all EVs (16A Portable Charger)
    PortabilityErgonomic Carry Handle
    Country of OriginMade in Bharat (India)
    Warranty1 Year

Key Features




Frequently asked questions

Here are some common questions about our company and Product.

Plagbox P1 is a portable EV charging extension box designed for safe and convenient electric vehicle charging. It extends your charging reach and includes a dedicated external earthing solution, allowing you to charge your EV more safely in locations where proper earthing is unavailable.

Proper earthing provides a low-resistance path for leakage current, helping reduce the risk of electric shock, protecting your EV and charger, and supporting safe and reliable charging.

Yes. Plagbox P1 includes an external earthing system with a pure copper earthing rod. When installed correctly, it creates a dedicated grounding point for your charging session, helping provide a safer charging experience where permanent earthing is unavailable.

Plagbox P1 is compatible with most electric vehicles that use a standard portable AC charger with a domestic 5A/15A plug. Always verify compatibility with your vehicle's charging equipment before use.

Plagbox P1 features a standard Indian 5A/15A domestic socket, making it compatible with most portable EV chargers designed for household power outlets.

Plagbox P1 is equipped with an industrial-grade Miniature Circuit Breaker (MCB) that automatically disconnects power during overcurrent or electrical faults. This helps protect both your EV charger and vehicle during charging.

Plagbox offers a 7-day replacement guarantee for manufacturing defects. The product will be replaced with the same model and colour, subject to availability. If a replacement is unavailable, a refund will be processed according to our replacement policy.

You can contact our support team through:

Email: support@plagbox.com

Phone / WhatsApp: +91 XXXXXXXXXX


 PLAGBOX P1

Everything You Need for Safe EV Charging

  • Up to 20 m, 2.5 sq.mm, 3-Core Pure Copper Cable
  • Up to 5 m, 2.5 sq.mm Pure Copper Earthing Cable
  • 12 cm Pure Copper Earthing Rod
  • Industrial-Grade MCB for Enhanced Safety

Starting from

₹ 9,999/-* ₹ 1,5000

Introductory Price*

  Buy Now

 PLAGBOX P1

  • Up to 20 m, 2.5 sq.mm, 3-Core Pure Copper Cable
  • Up to 5 m, 2.5 sq.mm Pure Copper Earthing Cable
  • 12 cm Pure Copper Earthing Rod
  • Industrial-Grade MCB for Enhanced Safety

Starting from

₹ 9,999/-* ₹15,000
